סוויץ´ 16 פורטים ג´יגה


סוויץ´ 16 פורטים ג´יגה

18298 :מק"ט


הורדת מפרט טכני
• 16*10/100/1000M RJ45 Ports
• Apply to IEEE802.3?IEEE802.3u?IEEE802.3ab standard
• Ethernet port supports 10/100/1000M adaptive
• Support auto MDI/MDIX
• Panel indicators to monitor working status and help fault analysis
• One-key smart switch, supports  VLAN, Default, Extend three modes
• Flow control, full duplex adopts IEEE802.3x standard, half duplex adopts Backpressure standard
• Port 1-8 supports Qos data priority
• Support Loop alarm

Product

Gigabit Ethernet Switch-16 Port

Model

18298

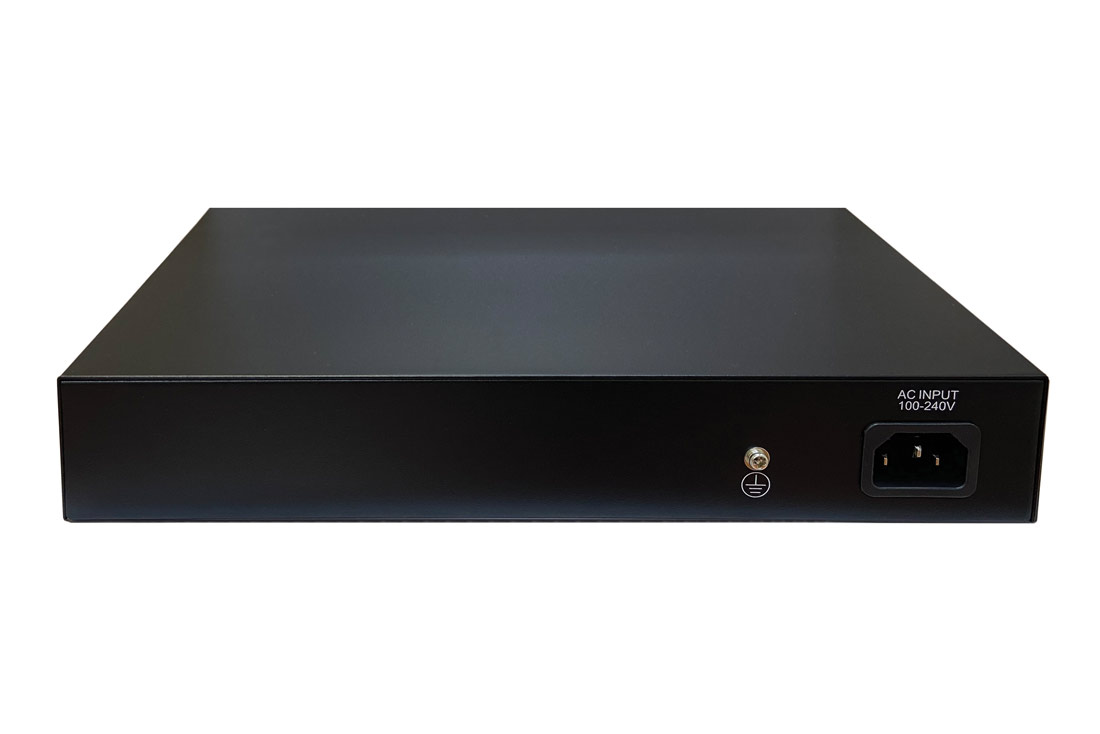

Power

AC input (100-240V)

Ethernet

16*RJ45 10/100/1000Mbps Ports

Performance

Switching Capacity

32Gbps

Throughput

23.8Mpps

Packet Buffer

4M

MAC Address

8K

Jumbo Frame

4K

Transfer Mode

Store and forward

MTBF

100000 hour

Standard

Network protocol

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3ab (1000Base-TX)

IEEE802.3x (Flow control)

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD)?EN61000-4-4 (EFT)

Shock: IEC 60068-2-27

Free Fall: IEC 60068-2-32

Vibration: IEC 60068-2-6

Network Medium

10Base-T: Cat3,4,5 or above UTP(?100m)

100Base-T: Cat5 or above UTP(?100m)

1000Base-TX: Cat5 or aboveUTP(?100m)

Protection

Security Certificae

CE, FCC, RoHS

Environment

Working Environment

Working Temperature: -10~50°C

Storage Temperature:-40~70°C

Working Humidity: 10%~90%,non-condensing

Storage Temperature: 5%~90%,non-condensing

Working Height: Maximum10,000 feet

Storage heigh: Maximum 10,000 feet

Indication

LED Indicators

PWR (Power indicator), Link (Network Link), LOOP (Loop alarm), 1000M

DIP Switch

VLAN: Port Isolation, 1-4 ports are isolated each other, all communicate with uplink port 15/16;

Default: Default mode, Support loop alarm;

Extend: Monitor Mode, 1-14 ports support 100M speed reduction negotiation, support 250 meters in 10Mbps/s mode, port 15 and port 16 as uplink port;

Mechanical

Structure Size

Product Size: 270*180*45mm

Package Size: 312*262*84mm

Product Net-Weight: 1.0kg

Product Gross-Weight: 1.5kg

Packing Info

MEAS: 540*435*332mm

Packing Qty: 10 unit

Packing weight: 16.5KG

Power Voltage

Power Input Voltage: AC 100-240 V

Package List

Switch 1 pcs, Power Apadter 1 pcs, User manual 1 pc, Warranty card 1 pc
