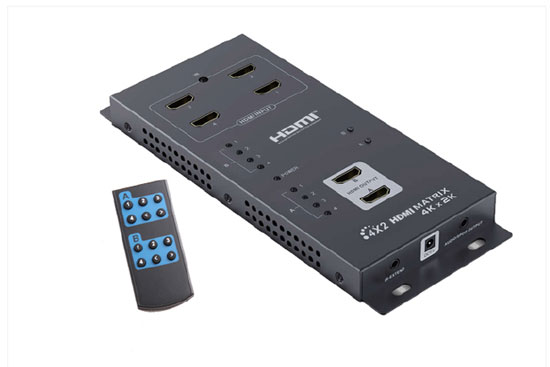

מטרציה HDMI 4Kx2K

18135 :מק"ט

מטריצה HDMI 4Kx2K תומכת 4 כניסות ו-2 יציאות HDMI 4K, תומכת PCM/DTS/CEC/HDCP, מגיע עם שלט IR וספק כח באריזה

הורדת מפרט טכני

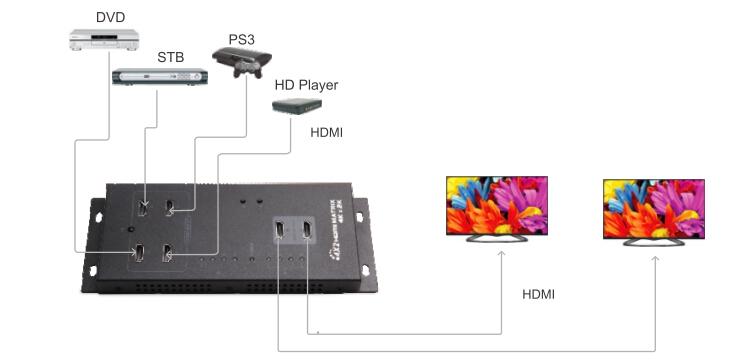

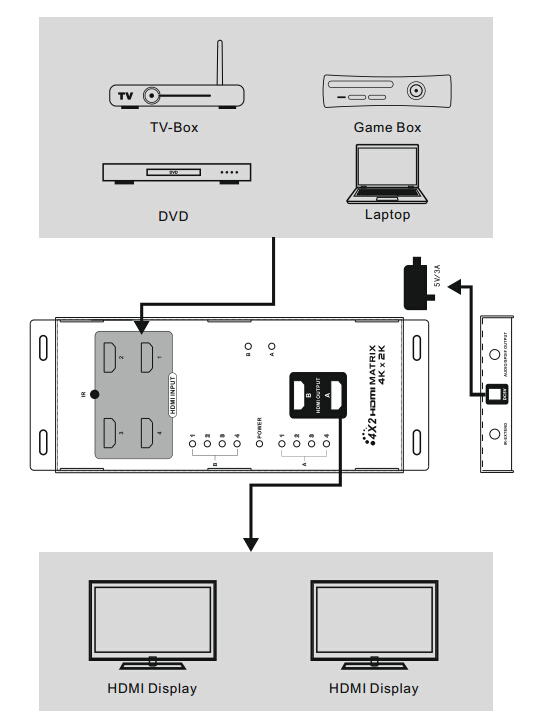

• Routes four Ultra Hi-Def sources to two Ultra HD displays

• Supports resolutions up to Ultra HD 4K x 2K (3840 x 2160 @ 30Hz) and 1080p Full HD

• Supports 12-bit Deep Color

• Supports PCM ,Dolby Digital™, and DTS Digital Surround™

• Support audio output simultaneously (from output A)

• HDMI input/output cables may be up to 10/15 meters with 1080p/8-bit resolution

• Supports HDMI/MHL dual mode input (input1)

• Supports CEC

• Supports HDCP

• Supports IR remote control

• Supports surface-mountable

18134-spec

Item	HDMI Matrix
Model	18135
Power supply	DC5V / 2A
Input ports	HDMI X 4
Outpurt ports	HDMI X 2
Power indicator led	Yellow LED X1
Signal indicator led	Blue LED X8
Frequency Range	25MHz - 340MHz
Max transmission rate	3. 4G X 3= 1 0. 2Gbps
Color depth	Supports 1 2-bit DeepFull HD, Full 3D and 4K x 2K video
Audio	Supports standard audio and DSD(Direct Stream Digital ) Audio and HD (HBR) Audio
HDMI resolution supported	480i@60Hz, 480P@60Hz, 576i@50Hz, 576P@50Hz, 720P@50@60Hz, 1080i@50@60Hz, 1080P@50@60Hz, 3D HDMI(720P@50@60Hz,1080P@24Hz), 3840X2160P@24@25@30 Hz
Dimension	213 X 86 x 19 mm
Net weight	390g
Color	Black
Working temperature	0-60C
