בורר HDMI 4K x 2K 3-1
בורר HDMI 4K x 2K 3-1
18125 :מק"ט

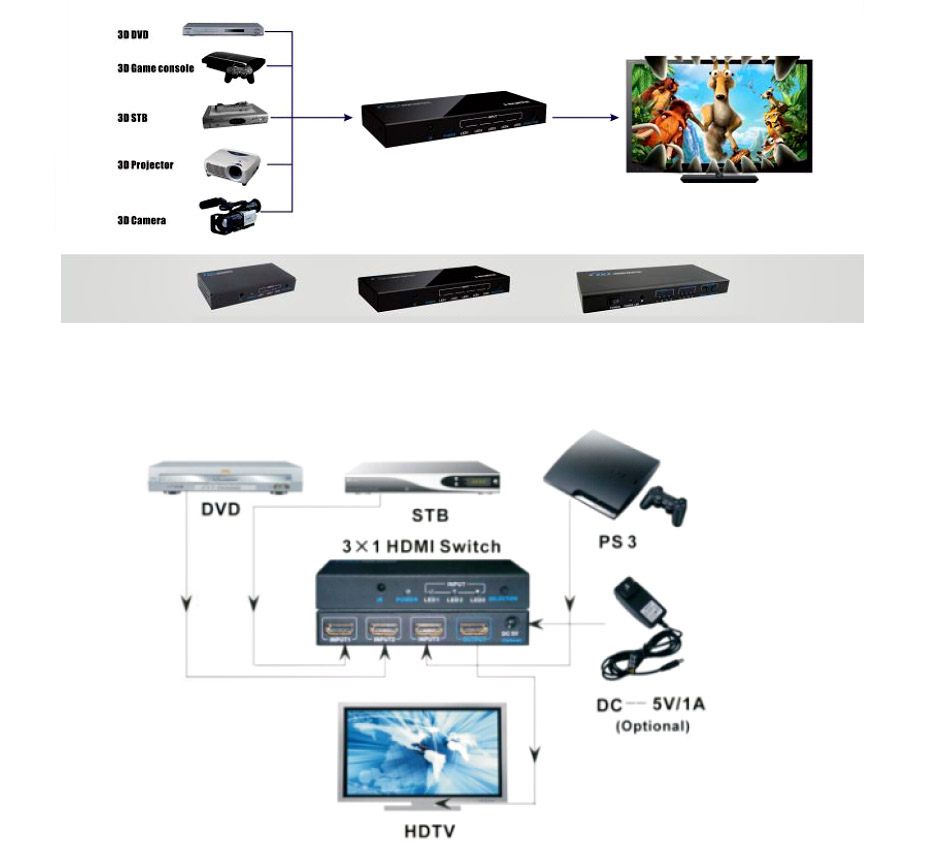

בורר HDMI 4K x 2K 3 TO 1 , מכיל 3 כניסות HDMI ליציאה 1 HDMI , לחצן בורר מעבר בין כל כניסה, מגיע עם שלט IR.
ניתן להוסיף ספק כוח.
• Supports HDMI resolution up to 4K x 2K

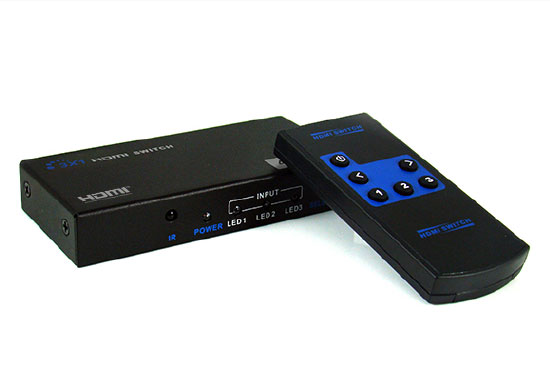

• Input signal can be switched by remote control or the button on this device
• HDCP pass-through
• Support HDMI 3D signal: 1080p@24Hz, 720p@50Hz/60Hz,
• Support compressed audio such as DTS and Dolby
• Support uncompressed audio such as LPCM
• Input signal can be switched by remote control or the button on this device
• HDCP pass-through
• Support HDMI 3D signal: 1080p@24Hz, 720p@50Hz/60Hz,
• Support compressed audio such as DTS and Dolby
• Support uncompressed audio such as LPCM
|
Item |
HDMI Switch |
|
Model |
18125 |
|
Input video signal |
0.5-1.0 volts p-p |
|
Input DDC signal |
5 volts p-p (TTL) |
|
Max sing link range |
1920 x 1200, 1080p |
|
HDMI resolutions |
480p/576p/720p/1080i/1080p/3D(1080p/24Hz) |
|
DVI resolutions |
480p/576p/720p/1080i/1080p |
|
XUVGA |
Up to 1920 x 1200 |
|
bandwidth |
Up to 225mhz |
|
Power supply |
DC 5V 1A optional |
|
Max power |
1w |
|
TMDS |
1Vp-p |
|
Resistance |
75 |
|
Max transmission length |
10 meters by 28 AWG HDMI cable 15 meters by 24 AWG HDMI cable |
